Domestic sewage

BG series mechanical grille

Product introduction
    BG series screen machine is applied to small sewage and industrial wastewater treatment in the grade stopped before a kind of important equipment.Several row on two circular stainless steel chain assembly made of stainless steel harrow, harrow from behind of stainless steel bar grating surface, under the drive of drive chain, harrow bottom-up, continuous cycle exercise will intercept the grille on the surface of the impurities such as suspended solids from the wastewater to the above the ground or platform and remove it, to protect the water pump has the purpose of processing load and reduce the subsequent working procedure.

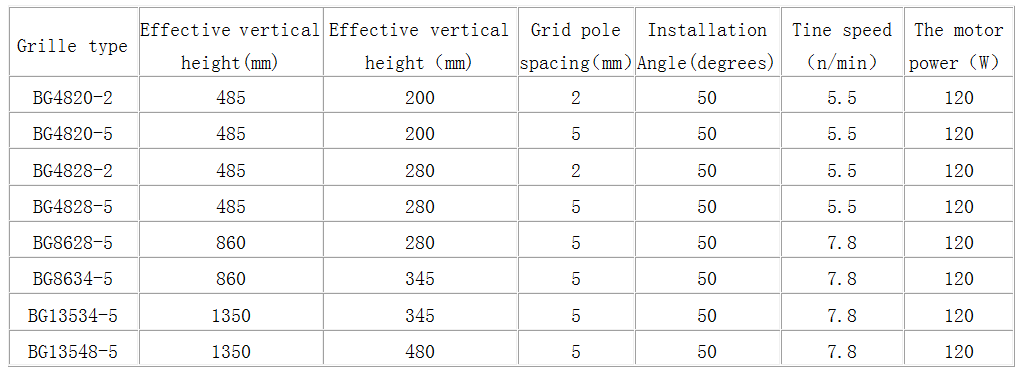

Product specification


structure
1. Stainless steel equipment body
2. The tooth rake
3. The gate
4. The drive motor
5. The chain
Characteristics of the equipment
1. Have sufficient corrosion resistance and strength, even in the bad environment, also can use for a long time;
2. The gate is fixed, tine bars in the middle of running structure, avoid the waste glued on the barrier and the plug grating;
3. Use waterproof motor, motor insulation performance is good;
4. Work stable performance, smooth operation, running low noise;
5. Simple structure, convenient operation, easy maintenance.
Scope of application
1. The pretreatment before buried sewage treatment equipment;
2. Water works, municipal pumping station, power plants, steel mills intake debris removal;
3.Pharmaceutical, paper making, chemical fiber, textile, printing and dyeing and other industrial waste sundry separation;
4. The solid-liquid separation of mineral industry;
5. Slaughtering industry wastewater treatment.
